Width 1300mm, 1600mm High speed Adhesive tape slitting machine

Making bopp packing tape from cutting jumbo roll

Technical parameters of this adhesive tape slitting machine:

Item	LD-500C	LD-1000C	LD-1300C	LD-1600C
Speed	180m/min	180m/min	180m/min	180m/min
Inner core diameter	1''--3''	1''--3''	3''	3''
Mini slitting width	12mm	12mm	12mm	12mm
Razor size	0.2*22*60mm	0.2*22*60mm	0.2*22*60mm	0.2*22*60mm
Max unwinding diameter	800mm	800mm	800mm	800mm
Max rewinding diameter	350mm	350mm	350mm	350mm
Power	380V,50HZ,3HP	380V,50HZ,5HP	380V,50HZ,5HP	380V,50HZ,5HP
Effective working width	500mm	1000mm	1300mm	1600mm

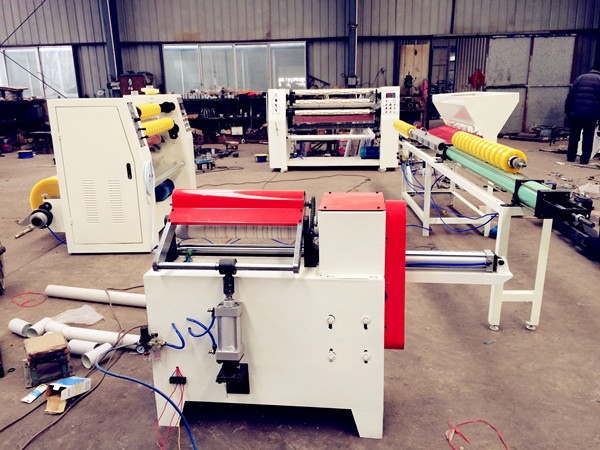

This LD-1600A adhesive tape slitting machine includes four parts: Slitting machine, core loader, core cutter and rewinder

Paper tube cutting machine: Cutting long paper core to the right size you want.

Paper tube loader: Set the paper core on the rewinding shafts.

Tape rewinder: Rewinding the imperfect tapes to good one.

Features:

1. Automatic consecutive 4-shaft changing:

when the rewinding operation is finished on one set of shafts, the machine will change automatically onto another set of shafts without any stop. It will have higher efficiency.

2.Three-step length counter: Giving accurate pre-setting of rewinding length.

3. Pneumatic brake: Brings the machine to an immediate halt when working at high speed because of inertia ,ensures excellent steady performance .

4. Automatic tension control

5. (Optional) Auto labeling and slitting stationery tape functions

6. (Optional)auto loading device for heavy jumbo roll

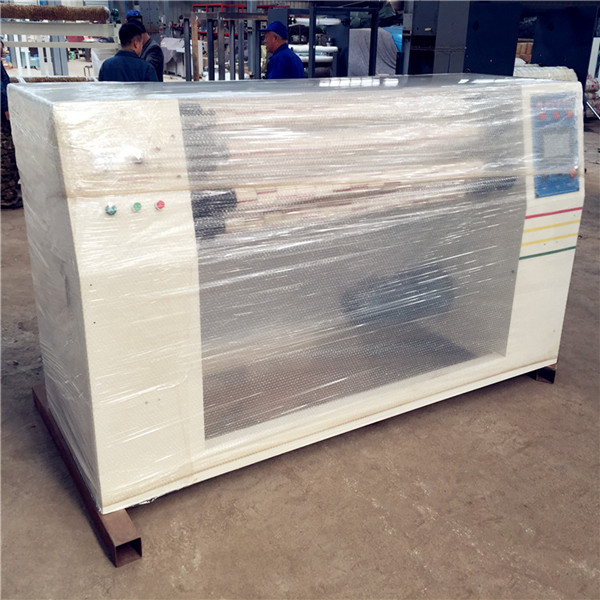

Packing:
